Description
ADVANTAGES

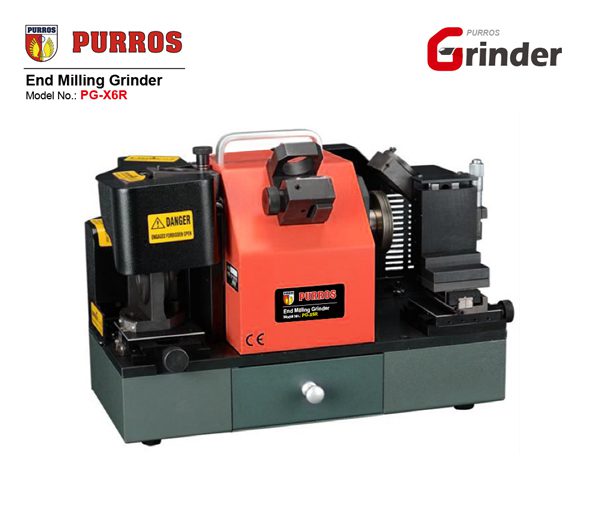

End mill grinder is a versatile grinding device that can be applied for cutting operations which need to be done in different angles. With this extensive types of cuts over different materials are carried out in accordance with the specific industrial usage.
1. Portable idiot end mill grinder, can grind 2-flute, 3-flute, 4-flute, 5-flute end mill (bigger than 12mm can grind 6-flute end mill).
2. It can grind the radius of corner radius end mill as R0.3, R0.5, R0.8, R 1 or R0.5，R1 or R1.5, R2.
3. Grinding is accurate and rapid, easy operation without skill to grind.
4. With Taiwan diamond grinding wheel, only one piece can complete all procedures.
5. It can be equipped directly with an accurate angle and long service life.
SPECIFICATION
| Model: | PG-X6R |
| Mill diameter: | Φ4-Φ14 |
| Point angle: | 0°-5° |
| Motor: | 220V/180W |
| Speed: | 5300RPM |
| Dimension: | 41×25×30CM |
| Weight: | 24KG |
| Standard Equipment: | Face grinding wheel: CBN (for HSS) |
| R grinding wheel: CBN (for HSS) | |
| Six collets: Φ4, Φ6, Φ8, Φ10, Φ12, Φ14 | |
| Types of collet chucks:
2,4 flutes ×1 piece; 3,6 flutes×1 piece; |
|
| Optional Equipment: | Face grinding wheel: SD (for carbide) |
| R grinding wheel: SD (for carbide) |
