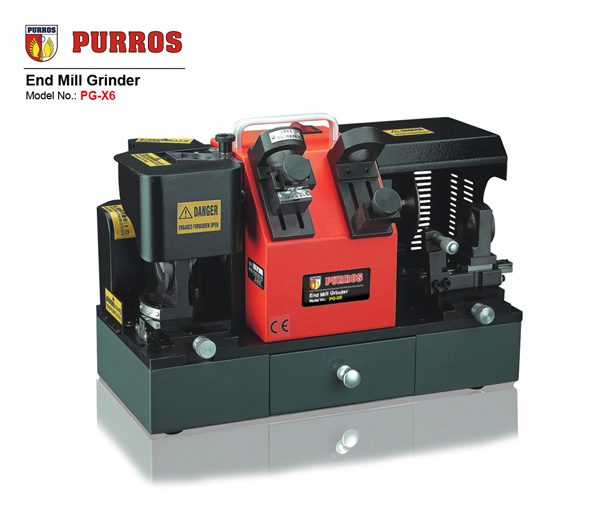

PURROS PG-X6 Spiral End Mill Grinder 4-14mm End Mill Sharpener Grinding Machine

Description

PRODUCT INSTRUCTION

End mill sharpening machine PG-X6
1. Portable idiot end mill grinder, can grind 2-flute, 3-flute, 4-flute, 6-flute end mill and can grind peripheral cutting edge.
2. Grinding is accurate and rapid, easy operation without skill to grind.
3. With Taiwan diamond grinding wheel, only one piece can complete all procedures.
4. It can be equipped directly with an accurate angle and long service life.

SPECIFICATION

Model:	PG-X6
Mill diameter:	Φ4-Φ14
Point angle:	0°-5°
Motor:	220V/180W
Speed:	5300RPM
Dimension:	41*25*30CM
Weight:	22KG

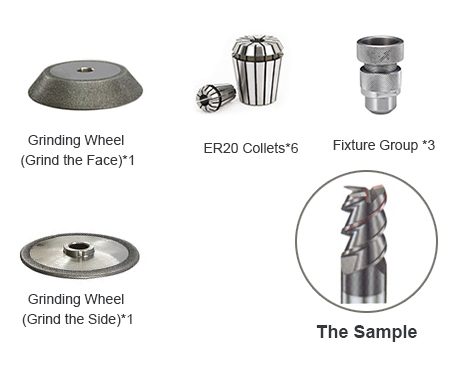

Standard Model:	Face grinding wheel :CBN (for HSS)
	Side grinding wheel: CBN (for HSS)
	Types of Collet:  Φ4,Φ6,Φ8,Φ10,Φ12,Φ14
	Types of Collet Chucks: 2,4 flutes*1 piece; 3,6 flutes*1 piece; Grinding the side of end mill*1 piece
Optional Model:	Face grinding wheel :SD (for carbide)
	Side grinding wheel: SD (for carbide)



Features:

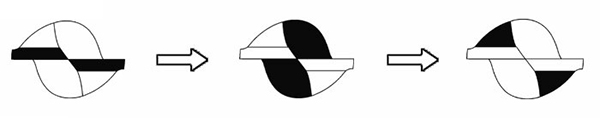

2-Flute End Mills

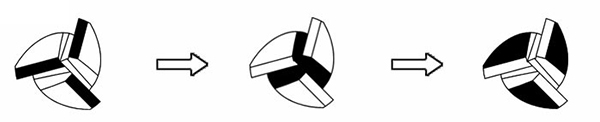

3-Flute End Mills

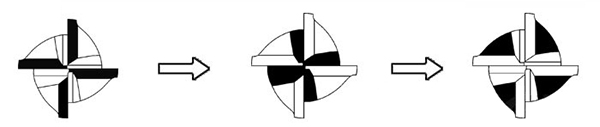

4-Flute End Mills

Fabricating of Milling Cutter
